Insert Image to Excel Using PowerShell

Tagged: PowerShell

Problem#

In this article, we will show you how to insert image to Excel using PowerShell.

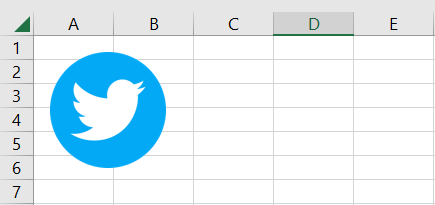

As the context, we will insert image to an empty worksheet, after which the sheet will look as follows:

Using Excel Com Object#

After creating the object, we will open the Excel file to get workbook object we want to manipulate.

Then, to insert the image we use AddPicture method from Shapes class. The last four arguments of the method determine the location and the size of the image. We set the position 10 from top and and upper-left corner of the sheet. For image size, we set 70 as the height and width.

You can check from the documentation regarding the description of all parameters.

try {
    # Open excel file
    $excel = New-Object -ComObject Excel.Application
    $workbook = $excel.Workbooks.Open("C:\Scripts\Book1.xlsx")

    # Get active worksheet
    $sheet = $workbook.ActiveSheet

    # Insert image
    $imageFile = "C:\Scripts\twitter.png"
    $picture = $sheet.Shapes.AddPicture($imageFile, $true, $true, 10, 10, 70, 70)

    # Save excel file
    $workbook.Save()
}
finally {
    # Close excel file
    $workbook.Close()

    $excel.Quit()
    [System.Runtime.Interopservices.Marshal]::ReleaseComObject($excel)
}

We enclose the code above with try-finally block because we want to make sure it will release the resource after modifying Excel that is performed at finally block.

Using ImportExcel Module#

ImportExcel is an external module that is built based on EPPlus which is a very well-known library to work with Excel spreadsheets in .NET.

Before using ImportExcel module, we have to install it.

Install-Module -Name ImportExcel

And then following previous solution pattern, we have to create Excel object first before inserting the image using AddPicture method from Drawings class.

You can check from the documentation regarding the description of all parameters.

try {
    # Import the module
    Import-Module ImportExcel

    # Open excel file
    $excel = Open-ExcelPackage -Path "C:\Scripts\Book1.xlsx"

    # Get active worksheet
    $currentWorksheetIndex = $excel.Workbook.View.ActiveTab
    $sheet = $excel.Workbook.Worksheets[$currentWorksheetIndex + 1]

    # Insert image
    $imageFile = "C:\Scripts\twitter.png"
    $fileInfo = New-Object System.IO.FileInfo $imageFile
    $picture = $sheet.Drawings.AddPicture("twitter", $fileInfo)
    $picture.SetPosition(10, 10)
    $picture.SetSize(70, 70)
}
finally {
    # Close excel file
    Close-ExcelPackage $excel
}

Similar to previous solution, we enclose the script with try-finally block to avoid memory leak.

Using PSExcel Module#

PSExcel is another module based on EPPlus library. You can find all the examples in github repository.

Before using this module, we have to install it.

Install-Module -Name PSExcel

In order to use the object, we must import the module first. Then, we create Excel object by specifying the path of our Excel file. This object will be used to insert the image using AddPicture method from Drawings class.

You can check from the documentation regarding the description of all parameters.

try {
    # Import the module
    Import-Module PSExcel

    # Open excel file
    $excel = New-Excel -Path 'C:\Scripts\Book1.xlsx'

    # Get active worksheet
    $currentWorksheetIndex = $excel.Workbook.View.ActiveTab
    $sheet = $excel.Workbook.Worksheets[$currentWorksheetIndex + 1]

    # Insert image
    $imageFile = "C:\Scripts\twitter.png"
    $fileInfo = New-Object System.IO.FileInfo $imageFile
    $picture = $sheet.Drawings.AddPicture("twitter", $fileInfo)
    $picture.SetPosition(10, 10)
    $picture.SetSize(70, 70)

    # Save excel file
    $excel | Save-Excel
}
finally {
    # Close excel file
    $excel | Close-Excel
}

We also enclose the script with try-finally block to avoid memory leak.

Conclusion#

To insert image to Excel using PowerShell, we can use excel module/libraries to manipulate excel.

We can use Excel Com Object which is based on .NET Framework. We can also use PowerShell external modules like PSExcel and ImportExcel. ImportExcel is an excellent module which is based on EPPlus library, a popular C# libary for woking with Excel from .NET.

PSExcel is the alternative of ImportExcel module. PSExcel is also based on EPPlus but this module is no longer maintained as stated in its GitHub repository.
