Problem#

In this blog post, we will show you how to hide Excel columns using PowerShell.

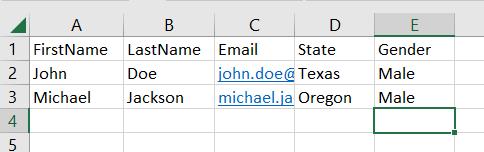

As the context, our original columns will look as follows:

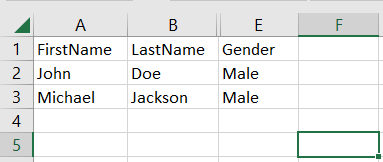

Then, after hiding Email and State columns, the columns will look as follows:

Using Excel Com Object#

After creating the object, we will open the Excel file to get workbook object we want to manipulate. Then, on current worksheet and within the range used, we will hide the column using Hidden property of column object.

try {
    # Open excel file
    $excel = New-Object -ComObject Excel.Application
    $workbook = $excel.Workbooks.Open("C:\Scripts\Test.xlsx")

    # Hide columns on current worksheet and within used range
    $workbook.ActiveSheet.UsedRange.Columns(3).Hidden = $true
    $workbook.ActiveSheet.UsedRange.Columns(4).Hidden = $true

    # Save excel file
    $workbook.Save()
}
finally {
    # Close excel file
    $workbook.Close()

    $excel.Quit()
    [System.Runtime.Interopservices.Marshal]::ReleaseComObject($excel)
}

We enclose the code above with try-finally block because we want to make sure it will release the resource after modifying Excel that is performed at finally block.

Using ImportExcel Module#

ImportExcel is an external module that is built based on EPPlus which is a very well-known library to work with Excel spreadsheets in .NET.

Before using ImportExcel module, we have to install it.

Install-Module -Name ImportExcel

And then following previous solution pattern, we have to create Excel object first before hiding the columns using Hidden property.

try {
    # Import the module
    Import-Module ImportExcel

    # Open excel file
    $excel = Open-ExcelPackage -Path "C:\Scripts\Test.xlsx"

    # Hide columns on active worksheet and within used range
    $currentWorksheetIndex = $excel.Workbook.View.ActiveTab
    $excel.Workbook.Worksheets[$currentWorksheetIndex + 1].Column(3).Hidden = $true
    $excel.Workbook.Worksheets[$currentWorksheetIndex + 1].Column(4).Hidden = $true
}
finally {
    # Close excel file
    Close-ExcelPackage $excel
}

Similar to previous solution, we enclose the script with try-finally block to avoid memory leak.

Using PSExcel Module#

PSExcel is another module based on EPPlus library. You can find all the examples in github repository.

Before using this module, we have to install it.

Install-Module -Name PSExcel

In order to use the object, we must import the module first. Then, we create Excel object by specifying the path of our Excel file. This object will be used to get the columns on current worksheet where the column will be hidden using Hidden property.

try {
    # Import the module
    Import-Module PSExcel

    # Open excel file
    $excel = New-Excel -Path 'C:\Scripts\Test.xlsx'

    # Hide columns on active worksheet and within used range
    $currentWorksheetIndex = $excel.Workbook.View.ActiveTab
    $excel.Workbook.Worksheets[$currentWorksheetIndex + 1].Column(3).Hidden = $true
    $excel.Workbook.Worksheets[$currentWorksheetIndex + 1].Column(4).Hidden = $true

    # Save excel file
    $excel | Save-Excel
}
finally {
    $excel | Close-Excel
}

We also enclose the script with try-finally block to avoid memory leak.

Conclusion#

To hide Excel columns using PowerShell, we can use excel module/libraries to manipulate excel.

We can use Excel Com Object which is based on .NET Framework. We can also use PowerShell external modules like PSExcel and ImportExcel. ImportExcel is an excellent module which is based on EPPlus library, a popular C# libary for woking with Excel from .NET.

PSExcel is the alternative of ImportExcel module. PSExcel is also based on EPPlus but this module is no longer maintained as stated in its GitHub repository. If it doesn’t provide functionality that you need, you should contribute to the source code by yourself.
